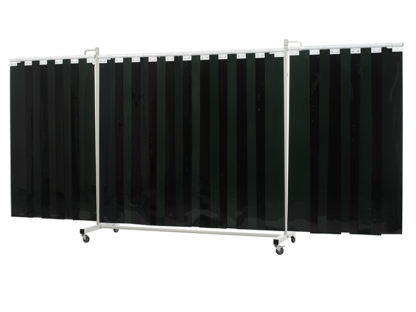

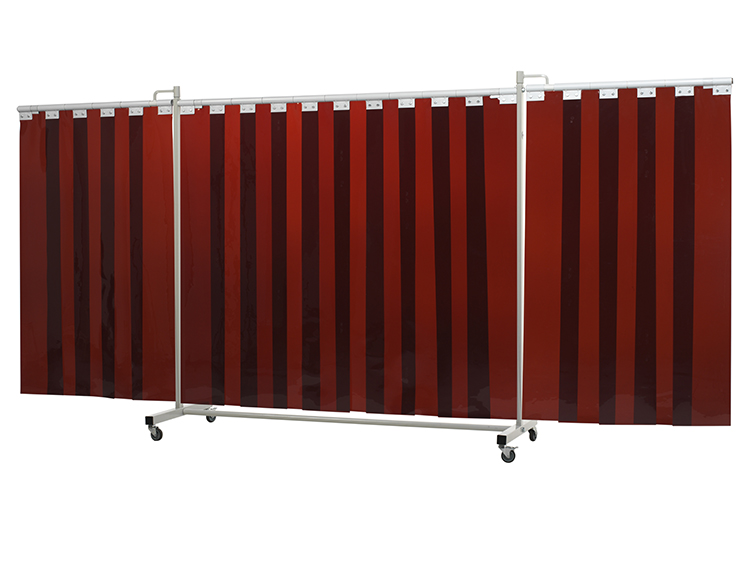

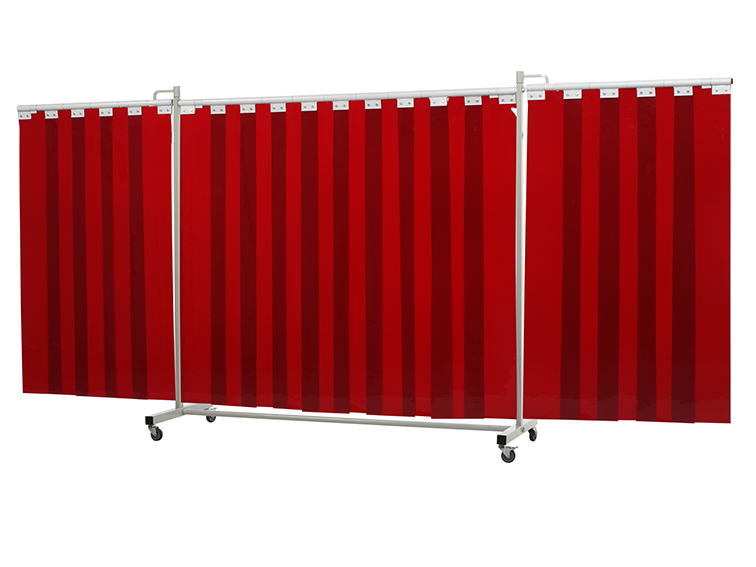

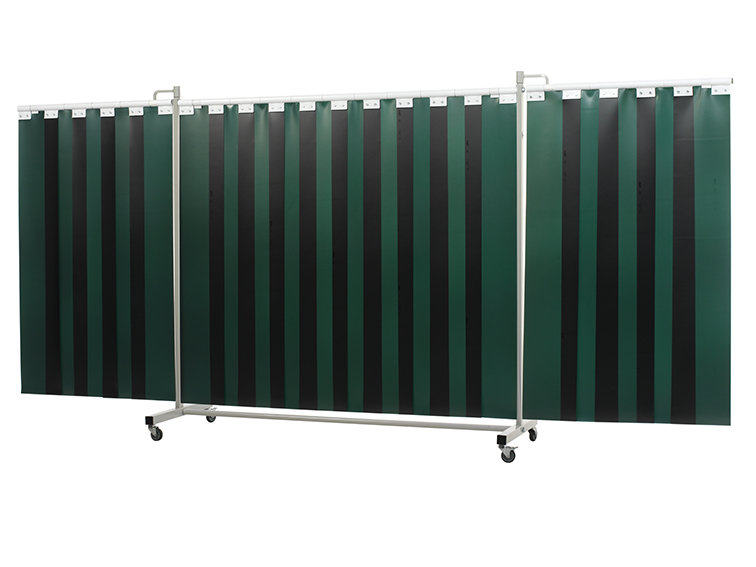

Robusto triptych xl welding screen 435 cm with strips

CEPRO Robusto triptych xl welding screen 435 cm with strips:
  • Height 210 cm
  • Width central section 215 cm
  • 2 swivel arms each 110 cm
  • Standard 4 swivel castors Ø 75 mm
  • 2 swivel castors with brake and 2 without
  • RAL 7035 powder coating finish
  • Round 35 x 2.5 mm tube
  • Rectangular 50 x 30 x 2 mm tube
  • Strips height 180 cm
  • Strips 300 x 2 mm
  • Overlap strips 10 cm
  • Plastic suspension clips
  • Strips ISO EN 25980 approved
SKU: N/A Categories: ,

Description

CEPRO Robusto welding screens are very high quality screens. Because they are solidly built they can be used in even the most demanding working conditions. Unless otherwise stated, all CEPRO welding screens are available as follows:

  • 210cm high
  • The frame is made from a 35 x 2.5 mm round tube and a rectangular 50 x 30 x 2mm tube
  • RAL7035 grey powder coating finish
  • Provided with four Ø 75mm swivel castors, two with a brake

Available models

  • Single screen, 215cm wide
  • Triptych screen, 215cm wide + 2 swivel arms each 70cm
  • Triptych XL screen, 215cm wide + 2 swivel arms each 110cm

Technical information

  • The CEPRO Robusto welding screen is supplied as an assembly kit in a strong cardboard box.
  • CEPRO Robusto welding screens are designed for indoor use
  • The nuts and bolts used to connect the frame should be checked regularly
  • You should regularly check the CEPRO Robusto welding screen for tears and/or other damage. Replace damaged curtains or strips if necessary
NameOrder number
Cepro Orange-CE replacement strips complete set29.05.18.0020
Cepro Green-9 replacement strips complete set29.09.18.0020
Cepro Green-6 replacement strips complete set29.06.18.0020
Cepro Bronze-CE replacement strips complete set29.07.18.0020

Certification

Cepro DownloadsCertificate – welding screen – Gazelle – Bronze-CE

Cepro DownloadsCertificate – welding screen – Gazelle – Green-6

Cepro DownloadsCertificate – welding screen- Gazelle – Green-9

Cepro DownloadsCertificate – welding screen – Gazelle – Orange-CE

Technical information

Cepro Downloads Technical sheet- welding screen – Robusto triptych xl
